Carta - Reichen et Robert Associates - Carré Bréguet

Conversion of the garage and mail sorting building on the Rue Bréguet. Creation of business facilities, shops and offices.

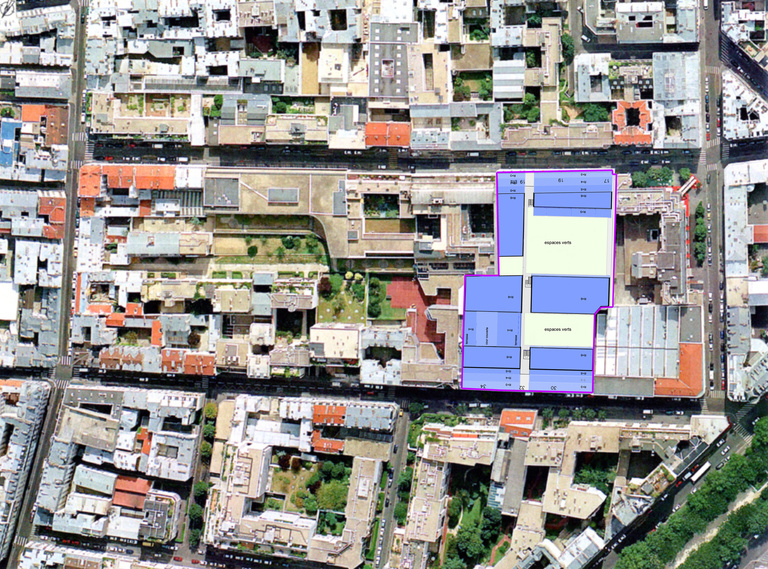

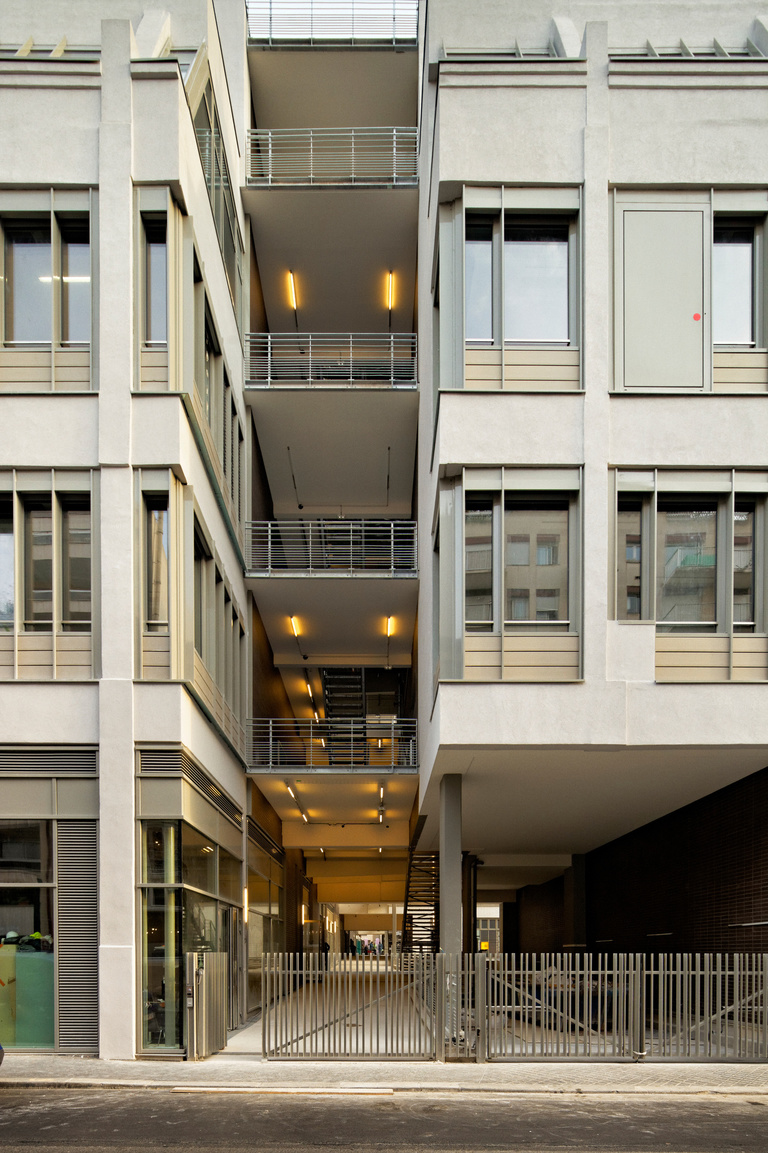

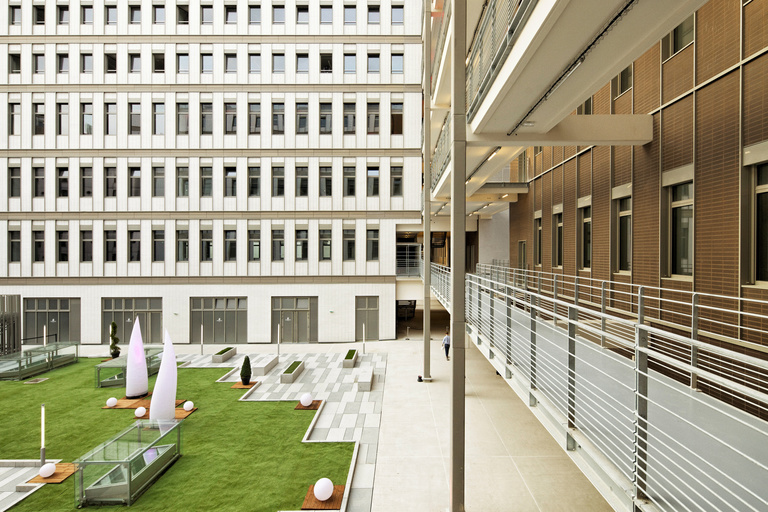

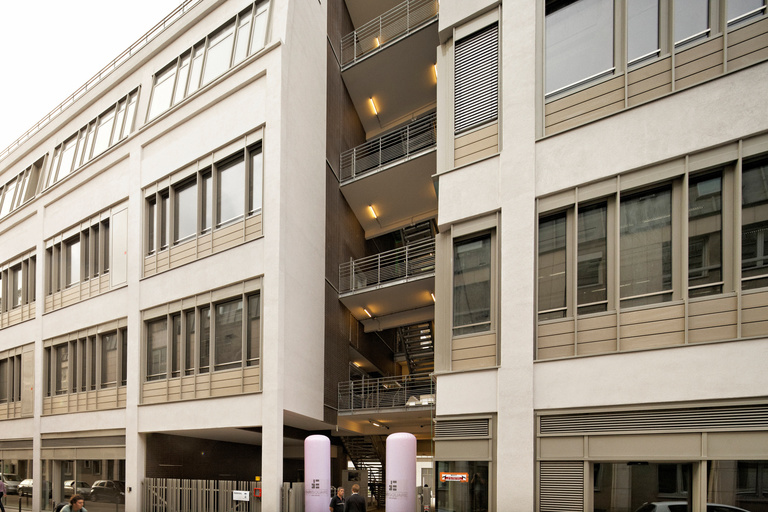

For the conversion of a building that occupies nearly the totality of the block between the Rue Bréguet and the Rue du Chemin-Vert, we first sought to create a built system that would be open in such a way as to constitute a network of pathways and walks. To do so the existing monolithic built volume was cut into “pieces” linked only by a main walkway.
The resulting five pieces have become more autonomous, and between them create different morphologies of space.
Based on the existing structure, we created building elements, giving priority to a large depth, in the neighbourhood of 18 metres. These depths coincide approximately with the structural grid of the existing building.

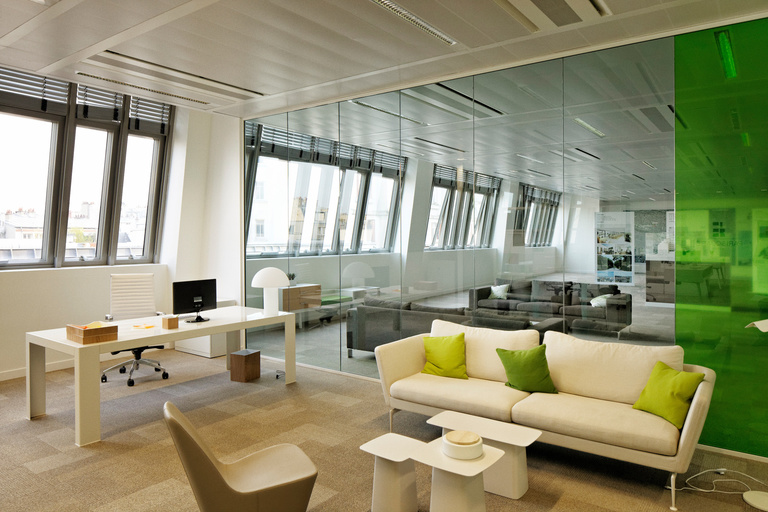

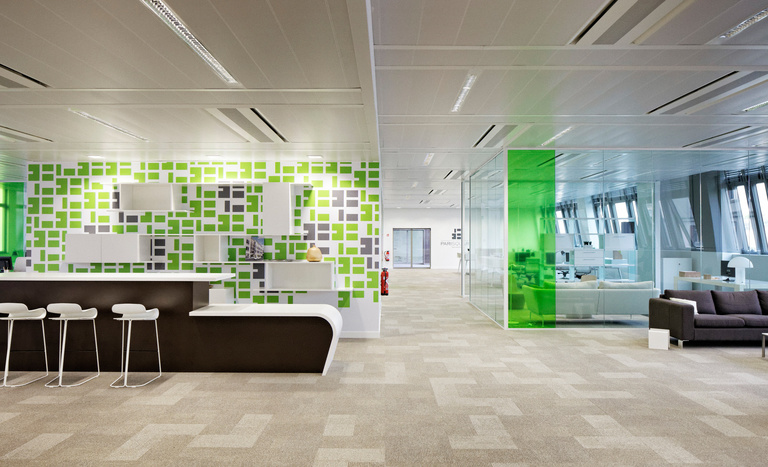

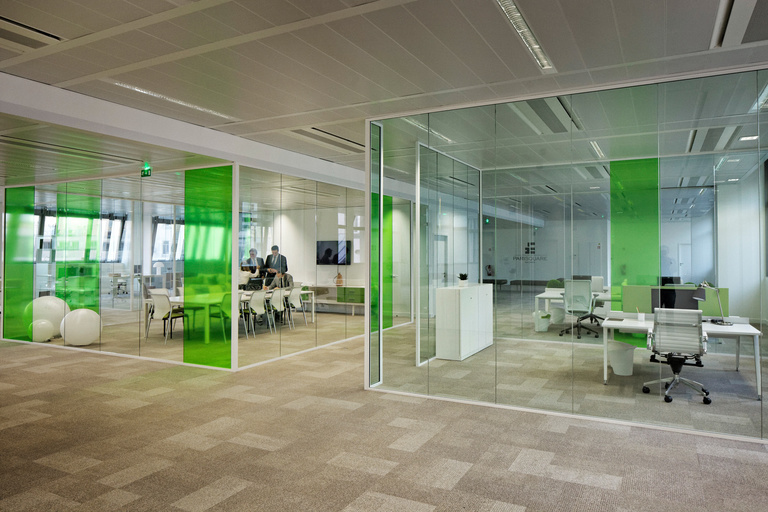

The overall levels of the floors were also preserved. The first three levels are quite high, whereas the upper stories are lower in height. All the floors are intended for offices delivered on a speculative basis and will be laid out in such a way as to provide a private access hall and independent sanitary facilities.


Delivery : 2014

Complete commission

Project owner
SCI PARIS BREGUET

Developer
Crédit Agricole Immobilier Entreprise

Architects
Reichen et Robert & Associés, lead architect

Construction architect: ARTELIA
Technical Design Office, fluids: INGENI
Structural Technical Design Office: SIBAT
Technical Design Office, HQE: ALTO
Landscaping: Sol Paysage
Technical Design Office, Façade: Interface
Acoustician: LASA
Scheduling, Construction Management and Coordination: Oger International

Co-contractor(s)
Project value: €60 M tax excluded

Area
28,700 m² net floor area
19,400 m² restructured area
9,300 m² area created
26,000 m² net floor area, offices
1,940 m² net floor area, shops
727 m² net floor area, public facilities

Environmental certification
HPEQA – BBC 2009 renovation label
Energy consumption: 78 kWh/m² per year

Photographer
Thierry Lewenberg-Sturm
